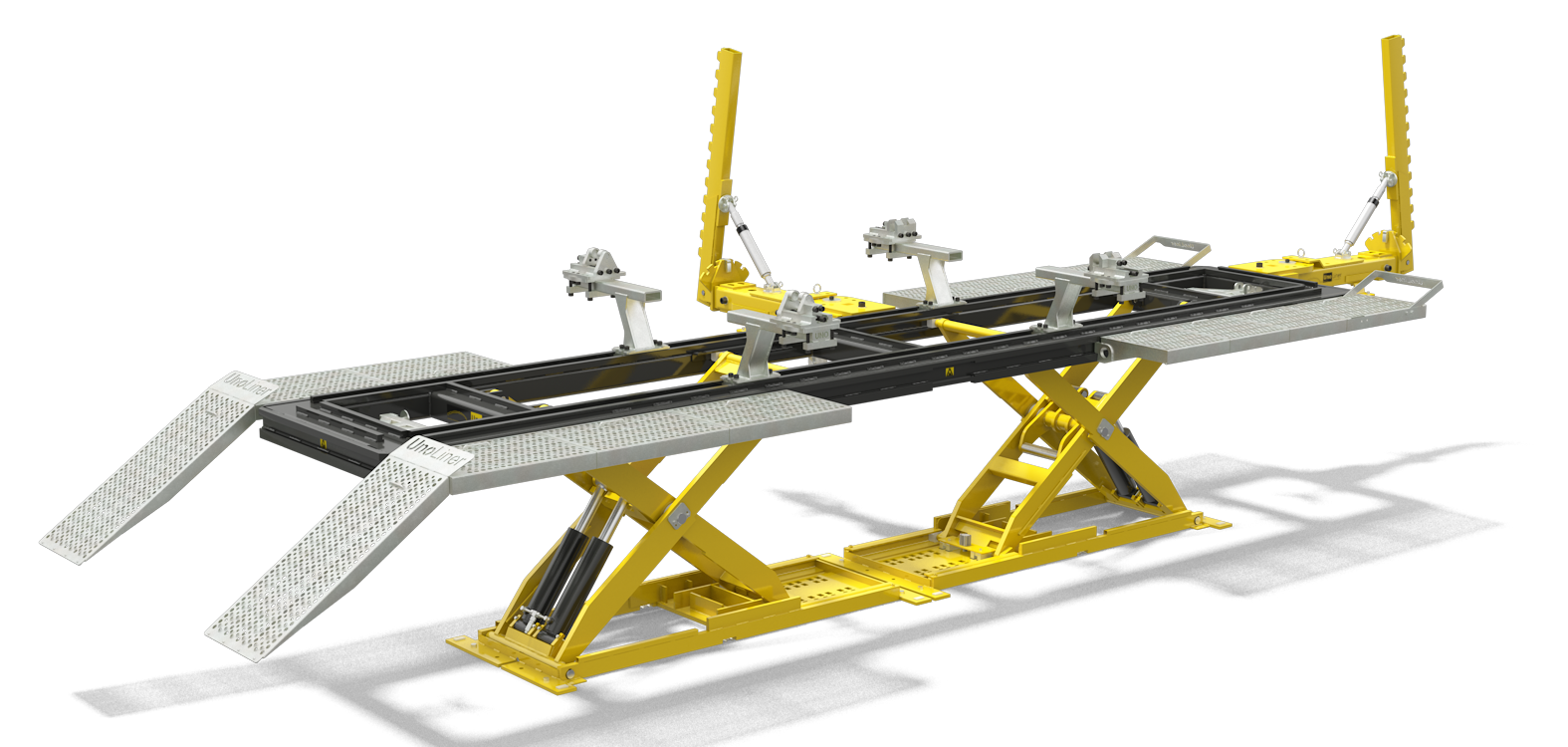

UnoLiner CRS6000TVM65-DO Drive On Frame Bench
Heavy-Duty Collision Repair with Jigging Accuracy
The UnoLiner CRS6000TVM65-DO Drive On Frame Bench is a powerful, accurate and highly versatile collision repair system for professional body shops working on cars, light trucks, pick-ups and commercial vehicles. With its double L36 scissor lift system, the CRS6000TVM65-DO offers an impressive 6,000 kg lifting capacity. This heavy-duty performance is even more remarkable when considering the low bench height of only 17.5 cm in its lowest position. Vehicles can be driven onto the bench easily and safely, making the system highly efficient for daily workshop use. The strong 6-metre bench frame provides the stability, working space and flexibility needed for modern structural repairs. With a bench frame length of 6060 mm and a bench frame width of 1160 mm, the CRS6000TVM65-DO is built for a wide range of vehicle sizes and repair applications.Drive-On Efficiency and All-Round Access
The CRS6000TVM65-DO is designed for efficient vehicle loading and excellent workshop workflow. Including the drive-on ramps, the system has a total length of 7140 mm and a total width of 2085 mm. The drive-on configuration allows technicians to position vehicles quickly, while the removable and flexible ramp setup provides good access around the vehicle during repair work. The bench reaches a maximum working height of 1235 mm, giving technicians a comfortable and practical working position for inspection, anchoring, measuring and straightening.Milled Two-Way Locking System
The CRS6000TVM65-DO features UnoLiner’s milled two-way locking profiles, designed for fast, secure and accurate placement of drive-on ramps, accessories, pulling equipment and the UnoLiner A110 Cameloen JIG System. This system allows the technician to position and combine multiple accessories around the bench. It also enables the placement of one or more UnoLiner P10 Draw Aligner pulling towers around the bench, giving the workshop excellent flexibility during structural repair and pulling operations.Cameleon Ready: Universal Flexibility with Jigging Precision

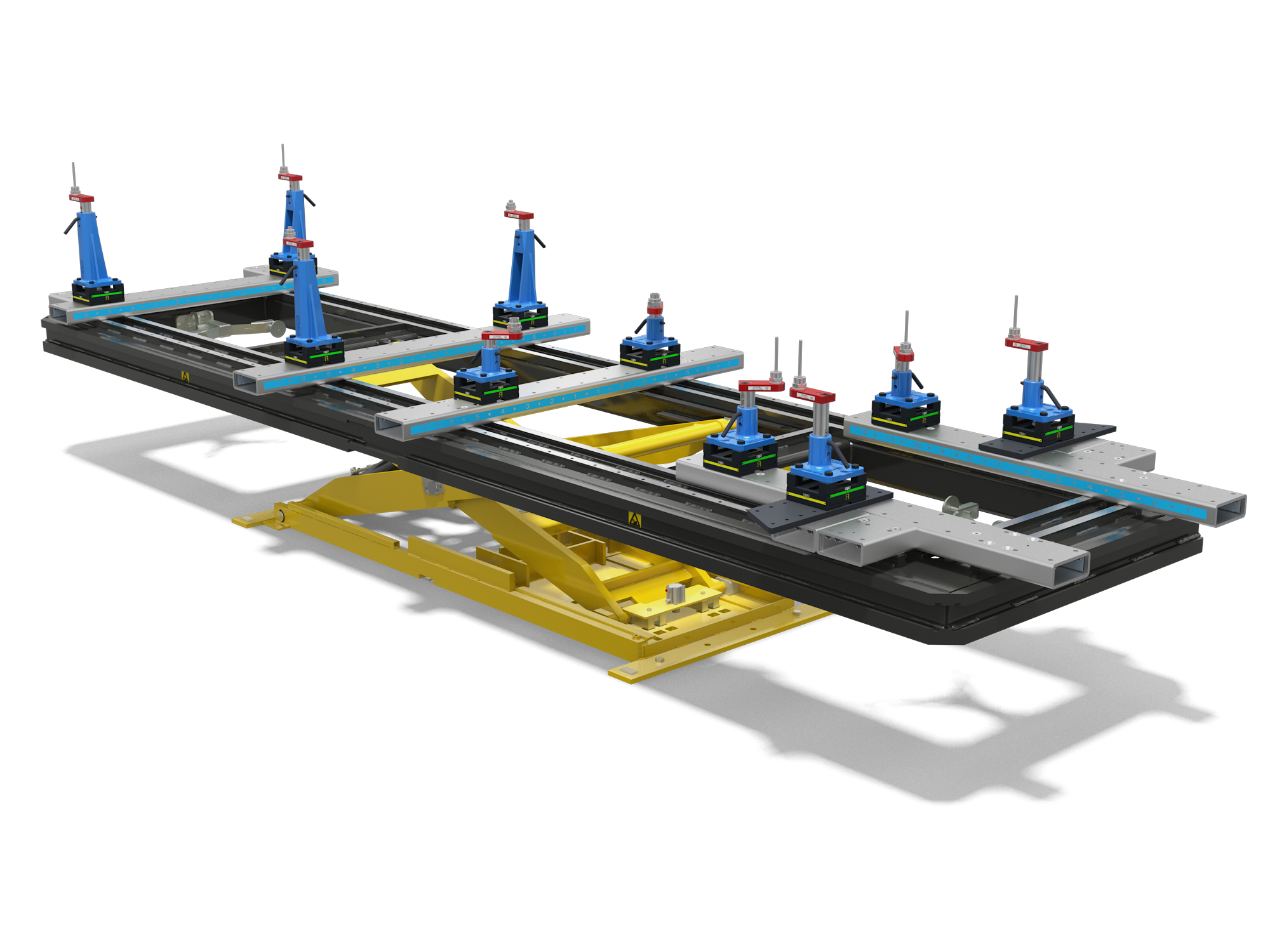

The CRS6000TVM65-DO combines the versatility of a universal bench system with the accuracy of a jigging bench. The upper jig mounting profile surface is machined to a tolerance of 0.2 mm, making the bench ready for use with the UnoLiner A110 Cameleon Plus Jig System. This allows workshops to carry out accurate jig-based repairs while maintaining the flexibility of a universal straightening bench. For body shops that require both speed and precision, the CRS6000TVM65-DO offers the ideal combination: drive-on convenience, universal accessory placement and jigging-ready accuracy.Built for Modern Repair Workshops
The CRS6000TVM65-DO is compatible with UnoLiner tools, equipment and accessories, making it a flexible platform for a complete collision repair setup. The system is suitable for a broad range of vehicles, including:- Passenger cars
- SUVs
- Light trucks
- Pick-ups
- Commercial vehicles
A Powerful Addition to Any Repair Workshop
The UnoLiner CRS6000TVM65-DO Drive On Frame Bench is the ultimate solution for workshops that need a strong, accurate and versatile collision repair system. By combining a 6,000 kg lifting capacity, low drive-on height, milled two-way locking profiles, Cameleon-ready jigging accuracy and all-round accessory placement, the CRS6000TVM65-DO is a powerful addition to any modern collision repair workshop.Features
- 6,000 kg lifting capacity
- Only 17.5 cm high in lowest position
- Unique two-way locking system
- Machined jig mounting surface with 0.2 mm tolerance
- Ready for UnoLiner A110 Cameleon Plus Jig System
- Mechanical and hydraulic safety systems
- Multiple-angle 10-ton pulling ability
- Suitable for cars, light trucks, pick-ups and commercial vehicles
- Heavy-duty 6-metre frame bench
- Drive-on configuration for easy vehicle loading
- Ready for the UnoLiner A110 Cameleon Plus Jig System
- Compatible with UnoLiner tools, equipment and accessories
Technical data
- Bench Frame Length : 6060 mm
- Bench Frame width : 1160 mm
- Max Bench Height : 1235 mm
- Min Bench Height : 175 mm
- Max load weight : 6000 kg
- Length incl. Ramps : 7140 mm
- Width incl. Ramps : 2085 mm
Images
Information
The CRS6000TVM65-DO is compatible with all UnoLiner tools, equipment, and accessories. The CRS6000TMV65-DO set includes the F60 bench frame with an L65 Double Scissor Lift, a set of R35TL Drive On Ramps, 4x C10 Quick Lock Chassis Clamp, 4x B10T Bench Adapters, 4x H25L Wheels Stands, 1x P10 Draw Aligner Pulling Tower, and 1x F1040 Bench Height Set.
